What Is PCB Fabrication and How Does It Work?

What Is PCB Fabrication and How Does It Work? The answer begins with a thin copper-clad board, not a finished circuit. PCB fabrication transforms an electrical design into a physical platform that connects chips, sensors, connectors, and power systems. Layers are pressed together, copper is patterned, holes are drilled, and surfaces receive protective finishes. Every step affects reliability.

Industry demand explains why this process deserves closer attention. The IPC International Technology Roadmap for Advanced Packaging and the 2024 Prismark Global PCB Industry Report identify automotive electronics, data infrastructure, communications, and consumer devices as major growth areas. These sectors require tighter line widths, higher layer counts, improved thermal control, and stronger inspection systems. Market estimates vary between reports. That difference matters. Forecasts are useful, but they are not guarantees.

John W. Mitchell, IPC President and CEO, has described the industry’s foundation clearly: “Electronics are everywhere, and PCBs are the foundation of electronics.” His observation reflects practical manufacturing experience. A small misalignment can change impedance. A trapped void can weaken a solder joint. An unclean copper surface can interrupt an entire signal path. Yet fabrication is not simply a sequence of machines. It is a controlled conversation between design rules, materials, chemistry, equipment, and human judgment.

The following guide examines each stage, from material selection and imaging to etching, drilling, plating, testing, and final inspection. It also considers where real factories struggle. Perfect results are expected, but manufacturing is rarely perfect. That tension makes PCB fabrication both technical and surprisingly human.

Table of Contents [Hide]

1 PCB Fabrication: Definition, Purpose, and Core Materials

2 How PCB Designs Are Prepared for Manufacturing

3 Layer Formation, Imaging, and Copper Pattern Development

4 Drilling, Plating, Solder Mask, and Surface Finishing

5 Electrical Testing, Quality Inspection, and Final Board Preparation

PCB Fabrication: Definition, Purpose, and Core Materials

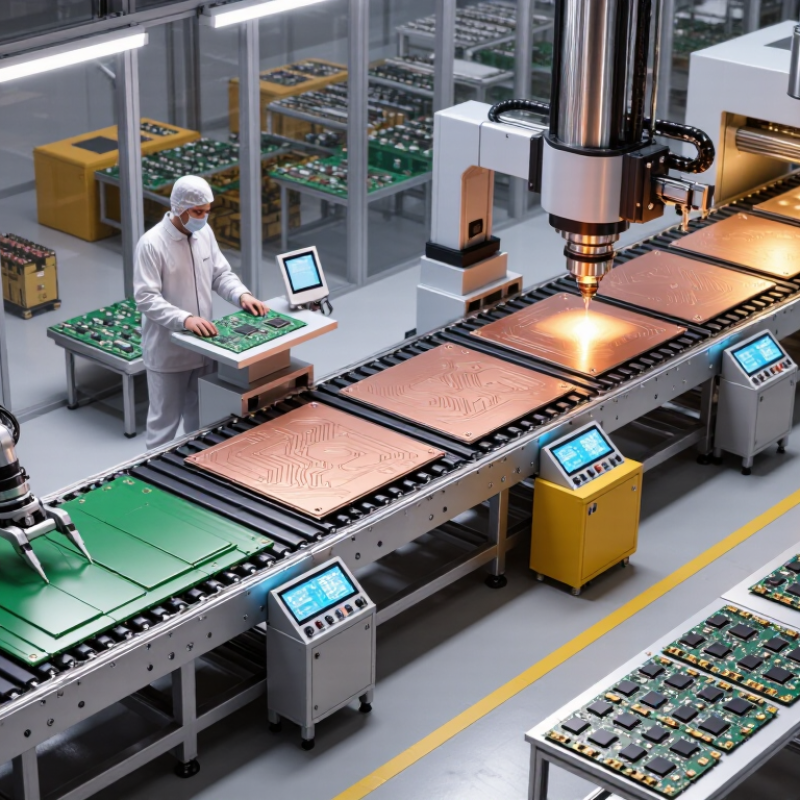

What Is PCB Fabrication and How Does It Work?

PCB fabrication is the controlled process of turning a circuit design into a physical board. It creates conductive paths, mounting points, and stable support for electronic components. The board must carry current accurately while surviving heat, vibration, and repeated assembly.

The process usually begins with a copper-clad laminate. The most common core combines woven glass fiber with epoxy resin, while flexible designs may use polyimide. High-frequency circuits can require materials with carefully controlled dielectric properties. Engineers transfer the circuit pattern onto copper, remove unwanted areas, and drill holes for components or electrical connections. Plating then builds copper inside the holes and across selected surfaces. Small details matter here. An uneven annular ring can weaken a connection.

A solder mask protects exposed copper from oxidation and accidental bridging. Surface finishing helps solder form reliable joints. Markings identify component locations during assembly and inspection.

Fabricators may use automated optical inspection, electrical testing, and dimensional checks to detect open circuits or shorts. Trace width, spacing, layer alignment, and impedance must match the design data.

However, fabrication is not perfectly predictable. Resin movement, drilling dust, and slight registration errors can affect results. That is why experienced teams review tolerances instead of trusting ideal drawings alone. A board can look clean and still fail electrically.

How PCB Designs Are Prepared for Manufacturing

What Is PCB Fabrication and How Does It Work?

PCB fabrication begins when an electrical design becomes a manufacturing package. The designer converts the schematic into a routed board layout. Each trace must connect correctly and maintain suitable spacing. The final files usually include copper layers, solder mask, silkscreen, and drill data.

Before manufacturing, engineers prepare the design for real production conditions. They define the board thickness, layer stackup, copper weight, and hole sizes. They also check clearances around pads, vias, and the board edge. Fabrication drawings should state tolerances, surface requirements, and critical dimensions clearly. A design review may reveal traces that are too narrow or holes that are difficult to plate. These details seem small. They can still cause delays, scrap, or unreliable connections. Design-for-manufacturing checks are valuable because software rules cannot catch every practical problem. For example, a crowded connector area may pass automated checks but remain difficult to inspect.

Tips: Keep manufacturing notes consistent across every file. Use clear layer names and verify that drill files match the board outline. Ask the fabricator to review unusual materials, tight tolerances, or controlled-impedance traces. Print the layout at full scale when possible. It can expose awkward labels and misplaced holes. I would not trust one final check. A second review often finds the mistake that looked obvious later.

What Is PCB Fabrication and How Does It Work? - How PCB Designs Are Prepared for Manufacturing

Manufacturing Stage	Main Purpose	Typical Inputs	Key Process or Design Considerations	Typical Output or Quality Check
1. Design Preparation	Convert the circuit concept into production-ready board data.	Schematic, component symbols, footprints, layer stackup, netlist, and design rules.	Confirm electrical connections, component orientation, board outline, mounting holes, copper layers, and manufacturing constraints.	Completed PCB layout with no unresolved design-rule violations.
2. Manufacturing Data Export	Provide the fabricator with standardized digital information.	Gerber or other image files, drill files, board outline, stackup information, and fabrication notes.	Use consistent units, clearly identify each layer, define plated and non-plated holes, and include a complete drill map.	Data package passes file validation and contains all required fabrication layers.
3. Engineering Review	Check whether the design can be built reliably and economically.	Manufacturing data, material requirements, impedance requirements, and assembly information.	Review trace spacing, hole sizes, annular rings, copper distribution, solder-mask openings, and panelization opportunities.	Approved manufacturing data or a documented list of required design changes.
4. Material Preparation	Prepare the insulating and conductive materials used to form the board.	Copper-clad laminate, copper foil, bonding sheets, solder mask, and surface-finish materials.	Material selection depends on layer count, operating frequency, temperature, mechanical strength, and dielectric requirements.	Materials are verified for thickness, copper weight, dielectric properties, and cleanliness.
5. Inner-Layer Imaging	Transfer the internal copper pattern onto copper-clad panels.	Cleaned copper panels, photoresist, and inner-layer artwork.	Ultraviolet exposure hardens selected photoresist areas; unprotected copper is then removed during etching.	Inspected inner-layer patterns with correct traces, clearances, and reference features.
6. Layer Registration and Inspection	Ensure that internal layers align correctly before lamination.	Etched inner layers, alignment targets, and automated inspection data.	Check for open circuits, unintended shorts, over-etching, under-etching, and dimensional distortion.	Verified inner layers ready for multilayer bonding.
7. Lamination	Bond copper layers and insulating materials into one multilayer panel.	Inner-layer cores, prepreg, copper foil, lamination plates, heat, and pressure.	Controlled temperature and pressure create a solid composite structure while maintaining the planned dielectric thickness.	Multilayer panel with stable bonding and acceptable layer registration.
8. Drilling	Create holes for electrical connections and mechanical mounting.	Laminated panels and numerically controlled drill data.	Hole types may include plated through-holes, vias, microvias, and non-plated mounting holes. Tool wear and drill wander must be controlled.	Hole locations and sizes are checked against the drill file.
9. Hole Wall Metallization	Make drilled hole walls conductive so copper layers can connect electrically.	Drilled panels, cleaning chemicals, catalyst, and electroless copper chemistry.	Hole walls are cleaned and coated with a thin conductive copper layer before further electroplating.	Continuous conductive coating inside required plated holes.
10. Outer-Layer Imaging and Plating	Form the final external copper circuitry and increase copper thickness.	Photoresist-coated panels, outer-layer artwork, and electroplating chemicals.	Selected areas receive additional copper; imaging and etching define traces, pads, and planes on the outer layers.	Outer-layer circuitry meets specified line width, spacing, and copper-thickness requirements.
11. Solder Mask Application	Protect copper from oxidation and reduce the risk of solder bridges.	Solder-mask coating, exposure artwork, and curing equipment.	The mask covers most copper while leaving pads, test points, and other required exposed areas available for soldering or probing.	Uniformly cured solder mask with correctly aligned openings.
12. Surface Finish	Protect exposed pads and support reliable soldering.	Exposed copper pads and a selected surface-finish process.	Common finish categories include hot-air-leveled solder, immersion coatings, and electroless metal finishes. Selection depends on shelf life, flatness, cost, and assembly needs.	Even pad coverage with acceptable solderability and thickness.
13. Silkscreen and Marking	Add identification and assembly-related information to the board.	Reference designators, polarity marks, revision information, and marking artwork.	Text must remain legible and must not overlap solderable pads, holes, or critical inspection areas.	Readable markings positioned according to the approved artwork.
14. Profile Routing and V-Scoring	Separate finished boards from the manufacturing panel.	Board outline data, routing tools, or scoring instructions.	Routing is used for complex outlines; V-scoring is suitable for straight panelization lines. Edge clearance and mechanical tolerances must be maintained.	Boards have the correct dimensions, edge shape, and panel breakaway features.
15. Electrical and Visual Testing	Verify that the finished bare board meets design and quality requirements.	Test fixtures, flying-probe data, optical inspection systems, and inspection criteria.	Checks may include continuity, isolation, conductor geometry, solder-mask registration, hole quality, surface finish, and visible defects.	Pass / Hold / Rework Decision
16. Final Inspection and Packaging	Protect accepted boards during storage and delivery.	Approved boards, inspection records, moisture-barrier packaging, and labels.	Confirm quantity, revision, cleanliness, packaging condition, and required certificates or inspection records.	Packaged PCBs released for component assembly or customer use.

Note: Actual materials, tolerances, layer structures, surface finishes, and inspection methods vary according to the board design, electrical requirements, product environment, and applicable manufacturing standards.

Layer Formation, Imaging, and Copper Pattern Development

PCB fabrication turns circuit data into physical conductive layers. The work begins with copper-clad laminate, cleaned to remove oil and oxidation. Layer formation depends on the design. A simple board may use two copper surfaces, while dense assemblies require many aligned layers. Inner cores receive photosensitive resist, then patterned light creates the circuit image. The resist protects selected areas during etching. Tiny errors matter. A misplaced registration mark can shift an entire layer.

After etching, technicians inspect traces, clearances, and reference targets. Optical inspection can find broken lines, unwanted copper, and pinholes that normal viewing may miss. Inspection is evidence. Layer pairs are stacked with insulating material between them, then pressed under controlled heat and pressure. This forms a solid multilayer panel. Drilling exposes connection points through the stack. The holes are cleaned and prepared before copper coats their walls. Reliable plating requires stable chemistry, temperature, agitation, and current density. “Clean enough” is not a measurement.

For outer-layer pattern development, another resist image defines where copper should remain or grow. In a subtractive process, unwanted copper is etched away after selective plating. In a semi-additive process, the sequence differs, but alignment remains critical. Final checks measure line width, copper thickness, insulation spacing, and plating coverage against engineering requirements. Process records support traceability and help separate design faults from production faults. A practical lesson is that yield often falls through small variations, not dramatic failures. The process is controlled, yet never flawless. Reviewing borderline panels can expose weak assumptions before they become field failures.

Drilling, Plating, Solder Mask, and Surface Finishing

PCB fabrication turns a digital circuit layout into a physical board. The process depends on controlled drilling, copper plating, solder mask, and surface finishing. Small errors can affect assembly and long-term reliability.

Drilling creates holes for component leads and plated connections between layers. CNC equipment must control hole size, depth, and position. After cleaning, copper plating coats the hole walls and exposed circuit areas. This step creates electrical paths through the board.

Uneven plating can cause weak connections or poor current-carrying capacity. Solder mask then covers most copper, leaving pads exposed for soldering. It helps prevent bridging, oxidation, and accidental contact. The mask must align accurately with each pad. A slight shift can reduce the solderable area.

Surface finishing protects exposed pads from oxidation and supports reliable solder joints. Common choices include leveling coatings, immersion tin, and immersion silver. The right option depends on storage time, assembly temperature, and contact requirements.

Tips: Confirm drill tolerances before production. Inspect plated holes with cross-sections when reliability matters. Check solder mask clearance around fine-pitch pads. Surface finish is not decoration. It affects solderability. No process is flawless. A rushed inspection may miss a thin plated wall or uneven finish.

Electrical Testing, Quality Inspection, and Final Board Preparation

After copper layers are pressed and drilled, the fabricated PCB enters a critical testing stage. Technicians check continuity, isolation, and unexpected electrical connections. A probe fixture touches selected test points across the board. For dense designs, even a tiny spacing error can create a false reading. Small gaps matter.

Electrical testing does not replace careful inspection. Trained inspectors examine solder mask coverage, plated holes, surface scratches, and uneven edges. Magnification reveals defects that normal lighting may hide. Automated imaging can compare circuit patterns with approved design data, but it still needs human review. Quality records should include test results, inspection notes, and any repaired areas. Not every defect is easy to classify.

Final board preparation begins after inspection approval. Operators remove dust, trim rough panel edges, and verify hole cleanliness. Each board receives identification marks and protective packaging. Moisture-control materials help reduce oxidation during storage and transport. I have seen excellent electrical results followed by careless handling damage. That step gets underestimated. A second visual check before packing can catch loose debris, bent contacts, or missing labels. When a board requires rework, the reason should be recorded clearly, even if the mistake seems minor. These details support traceability and help production teams improve their process.
